Lighting across the cabin
The source guide covers the center console and doors as part of the Q5 ambient-light system, with product and connection references.
Q5 · 2018–2023
Audi Q5 Ambient Light Kit
Product reference 101 / 02
LISTED FOR Q5 · 2018–2023
Audi Q5 Ambient Light Kit
Explore coordinated ambient lighting for the Audi Q5, with reference product photos and a matched guide for the main module, door modules and wiring. Review your original equipment and the programming plan before choosing the kit, then keep the guide alongside the installation.
Listed for Q5 · 2018–2023We’ll confirm the version for your equipment.Choose a car listed for this product before adding it. Check your version
Delivery and returns
Delivery
Returns
01 / THE UPGRADE
A closer look.
A clearer choice.
Plan the main-module setup
The guide calls for main-module installation and programming before the remaining components are connected. Check the required setup before starting trim work.
Troubleshooting linked to the same kit
The illustrated guide covers no-light, color, brightness and control issues so installation questions can stay tied to the correct product.
02 / YOUR CAR. YOUR VERSION.
Get the fit
right first.
Start with your model year and a photo of your original equipment. We’ll help identify the connection for your setup.
Check with CKCPSelected car Q5 · 2018–2023
- Guide reference
- Audi Q5 model years 2018–2023 are named in the source guide. Confirm the individual vehicle, original interior and control-system configuration before ordering.
- Original equipment
- Share the model year, ambient-light interface and original interior photographs. CKCP needs to check the selected module and connection version.
- Programming and wiring
- The guide includes main-module programming and BCM connection guidance. Confirm the installation plan and matching diagrams for your car.
Selecting a model does not confirm compatibility with every year, trim or original equipment package.
03 / PARTS & DETAILS
Know what
you’re choosing.
Confirm your exact kit before ordering.

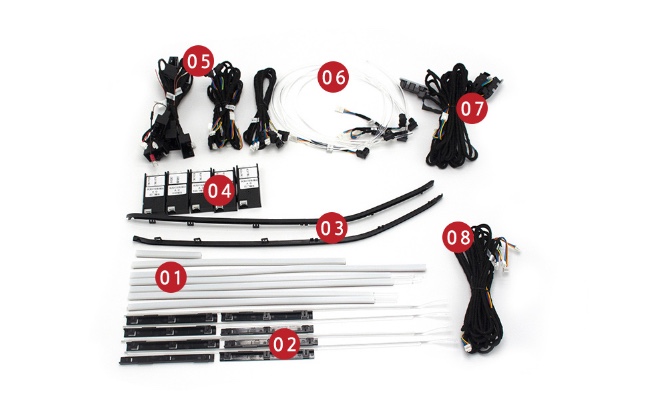

Reference components
- Ambient-light components
- Published photos show reference material for this Q5 lighting product. Confirm the parts and quantities supplied for your selected version.
- Main and door modules
- The source describes a main control module and four-door modules. Modules, harnesses and any necessary extra adapters are confirmed for the vehicle.
- Confirm your supplied set
- Reference photographs illustrate the product. Final components, quantities, adapters and any separately required items must be confirmed for your vehicle before ordering.
Product specifications
- Product scope
- Console and door ambient-light upgrade
- Setup reference
- Main-module programming followed by door-module installation
- Connection reference
- Model-matched BCM wiring guidance in the installation tutorial
Final contents, wiring and any additional module are confirmed for your car in the quote.
PREPARE BEFORE YOU START
Have your tools ready.
Check the matching guide and your car before starting. Tools shown in a guide may not be a complete list.
A tool list has not been confirmed for this product. Ask CKCP to check what you need for your installation.
04 / DO IT YOURSELF. WITH SUPPORT.
See the steps.
Know your next move.
Look through this product’s illustrated guide before you decide. During installation, ask a question beside the step you’re working on.
Open the installation guideSign in to read the full guide and join the discussion.
PRODUCT-MATCHED GUIDE CAOLIAO-159915704
- Before you begin
- Read the matched wiring and installation sections before removing trim. The guide specifies main-module installation and programming first, then the four-door modules, with the ambient-light module reconnected after the components are installed. Ask for help if the original connectors or equipment do not match the diagrams; do not substitute another Audi model’s wiring instructions.
Illustrated instructionsQuestions linked to each stepFind available editions & supplements in the guide
Installation questions & answers
05 / BEFORE YOU START
A little clarity.
More confidence.
Product questions here. Step-by-step help in the matching guide.
Join this product’s discussionIs programming part of the installation?
Yes. The source guide describes installing and programming the main module before completing the lighting components. Confirm the required setup for your vehicle before ordering.
Will it fit every 2018–2023 Q5?
The source guide names those years, but the exact interior, control system and product version still need to be checked. Send CKCP photos of your original equipment.
What if the lights are dim or the colors do not match?
The matched guide has separate checks for light position, individual colors and module control. Use its discussion beside the relevant section and share photos of the result and connections.
Is a multimeter included or required for the normal fitting steps?
The source mentions a multimeter in troubleshooting. That is not a complete installation tool list or a promise that a meter is supplied. Confirm the tools and final kit contents before starting.
Where can I get help before or during installation?
Open the product-matched installation guide to review the steps. Sign in to ask beside the relevant section and add a photo or short video of your setup. You can also contact CKCP with your model details and the point you need help with.
