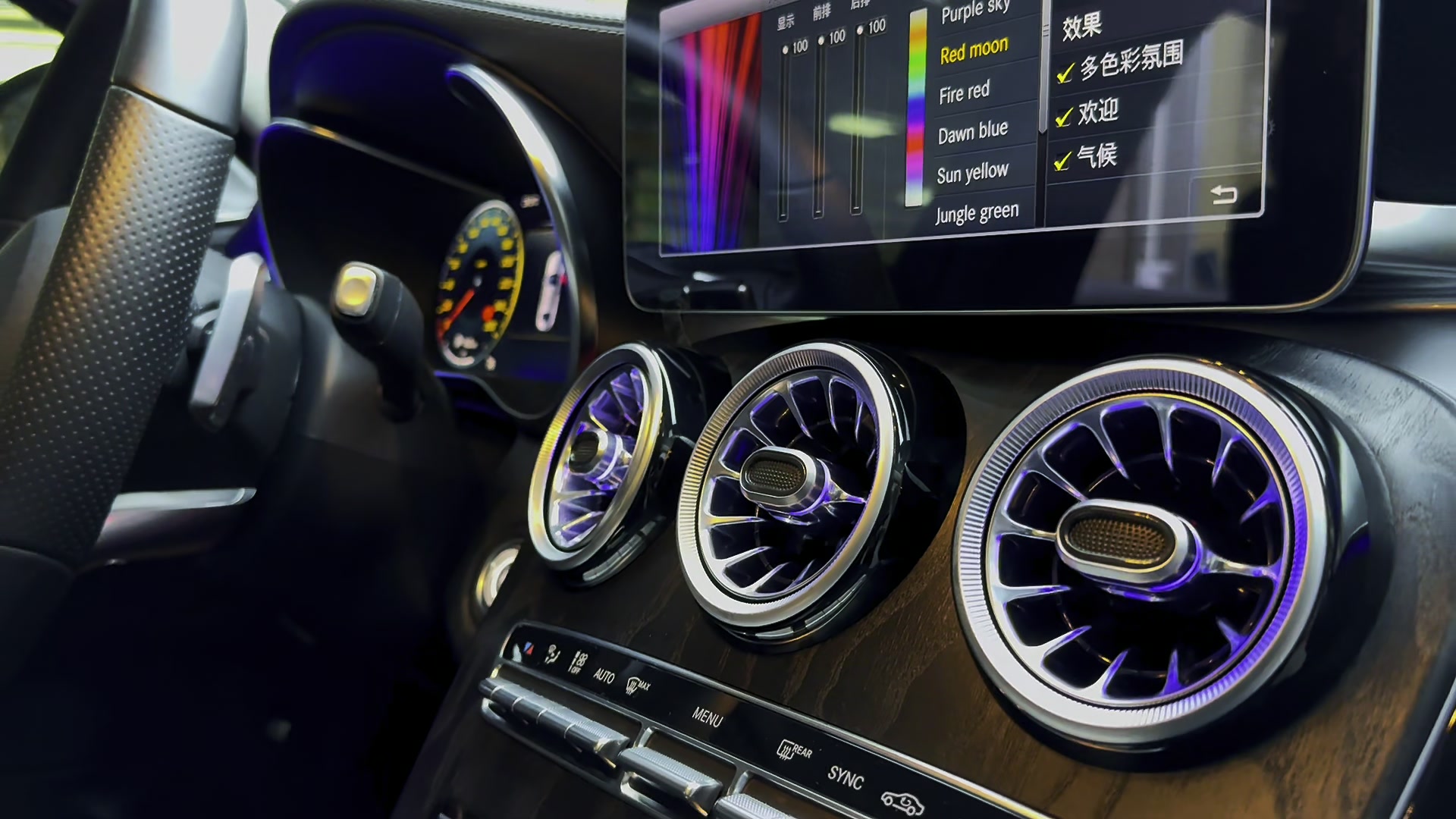

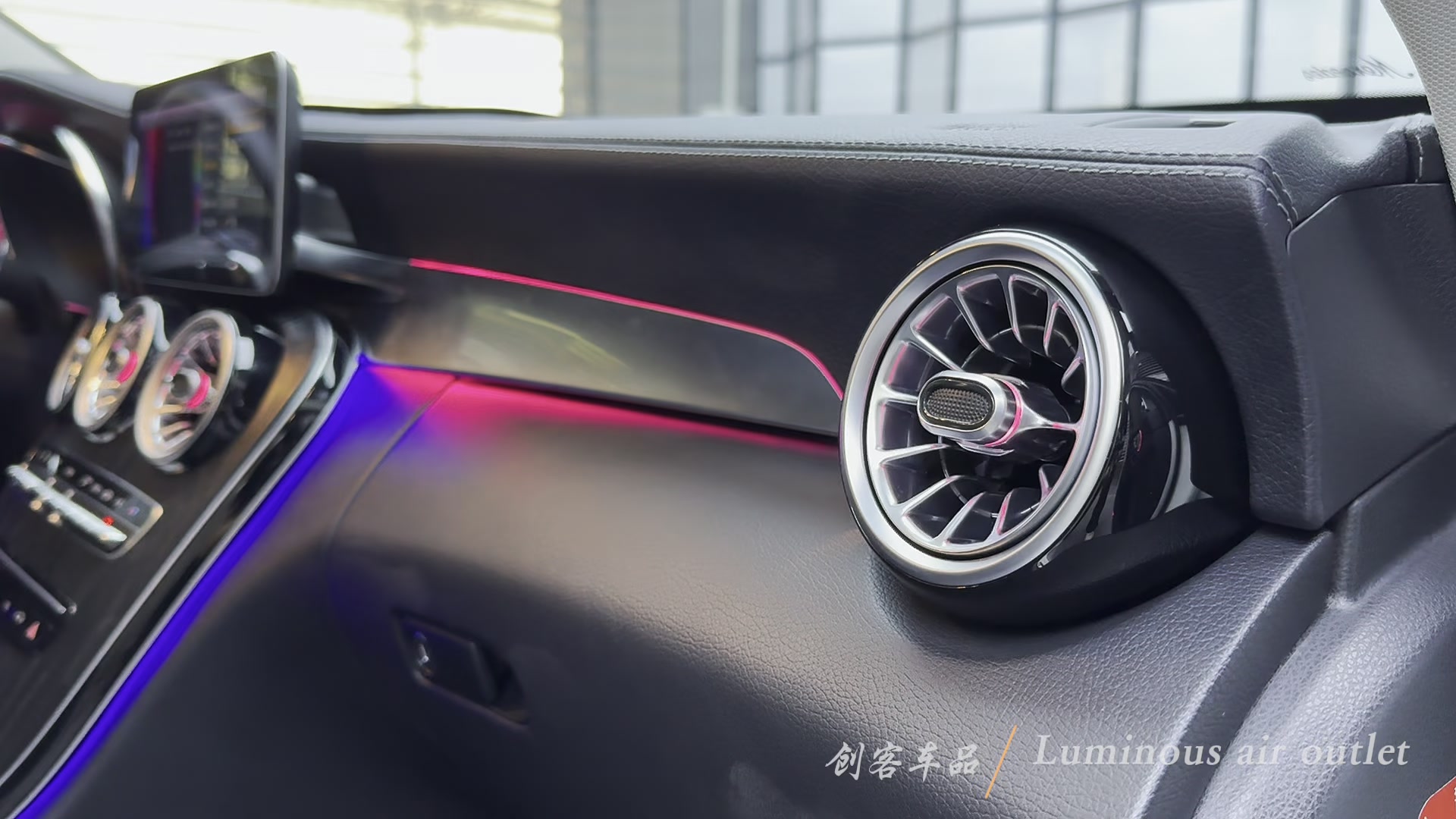

Turbine-style front vents
The real product and installed photos show black vent housings, silver-colour surrounds and adjustable centre tabs across the dashboard.
C-Class · W205
Illuminated front air vents
Watch videoPlay here · CKCP showcase
Loading video player…
Play in this window.Open video
Centre vents · video still01 / 05
LISTED FOR C-CLASS · W205
Illuminated front air vents
Give the W205 dashboard a turbine-style finish with illuminated replacement front air vents. Explore real installed views and component photos, then confirm your existing ambient-light system so CKCP can check the required wiring and module.
Listed for C-Class · W205We’ll confirm the version for your equipment.Delivery and returns
Delivery
Returns
01 / THE UPGRADE
A closer look.
A clearer choice.
Lighting matched to your setup
The installation guide describes colour changes that follow the ambient lighting when the correct module and wiring are used. Factory and retrofitted ambient-light systems need different checks.
Installation guidance for this upgrade
The linked guide covers replacement of the dashboard vents, the wiring arrangements and colour checks. Review the guide and confirm your configuration before ordering parts.
02 / YOUR CAR. YOUR VERSION.
Get the fit
right first.
Start with your model year and a photo of your original equipment. We’ll help identify the connection for your setup.
Check with CKCPSelected car C-Class · W205
- Selected vehicle
- Mercedes-Benz C-Class W205. Send your model year and a photo of your original dashboard before ordering.
- Guide reference
- The source guide names 2015–2021 W205 vehicles. Confirm the individual vehicle, existing vent design and ambient-light configuration before ordering; the guide range is not an unconditional fitment guarantee.
- Factory ambient lighting
- The guide requires a separate drive module for the front vents. C-Class and GLC front-vent modules are not interchangeable.
- Retrofitted ambient lighting
- The front-vent lighting is connected to the existing aftermarket ambient-light wiring. CKCP needs to check the system already fitted to the car.
- No ambient lighting fitted
- The guide specifies a separate drive module and programming/coding to enable the ambient-light interface.
- Standard-wheelbase and AMG variants
- For the factory-lit standard-wheelbase C-Class, C43 and C63 examples identified in the guide, a dedicated door adapter module is ordered separately. Ask CKCP to check the exact vehicle configuration.
Selecting a model does not confirm compatibility with every year, trim or original equipment package.
03 / PARTS & DETAILS
Know what
you’re choosing.
Confirm your exact kit before ordering.
Reference components

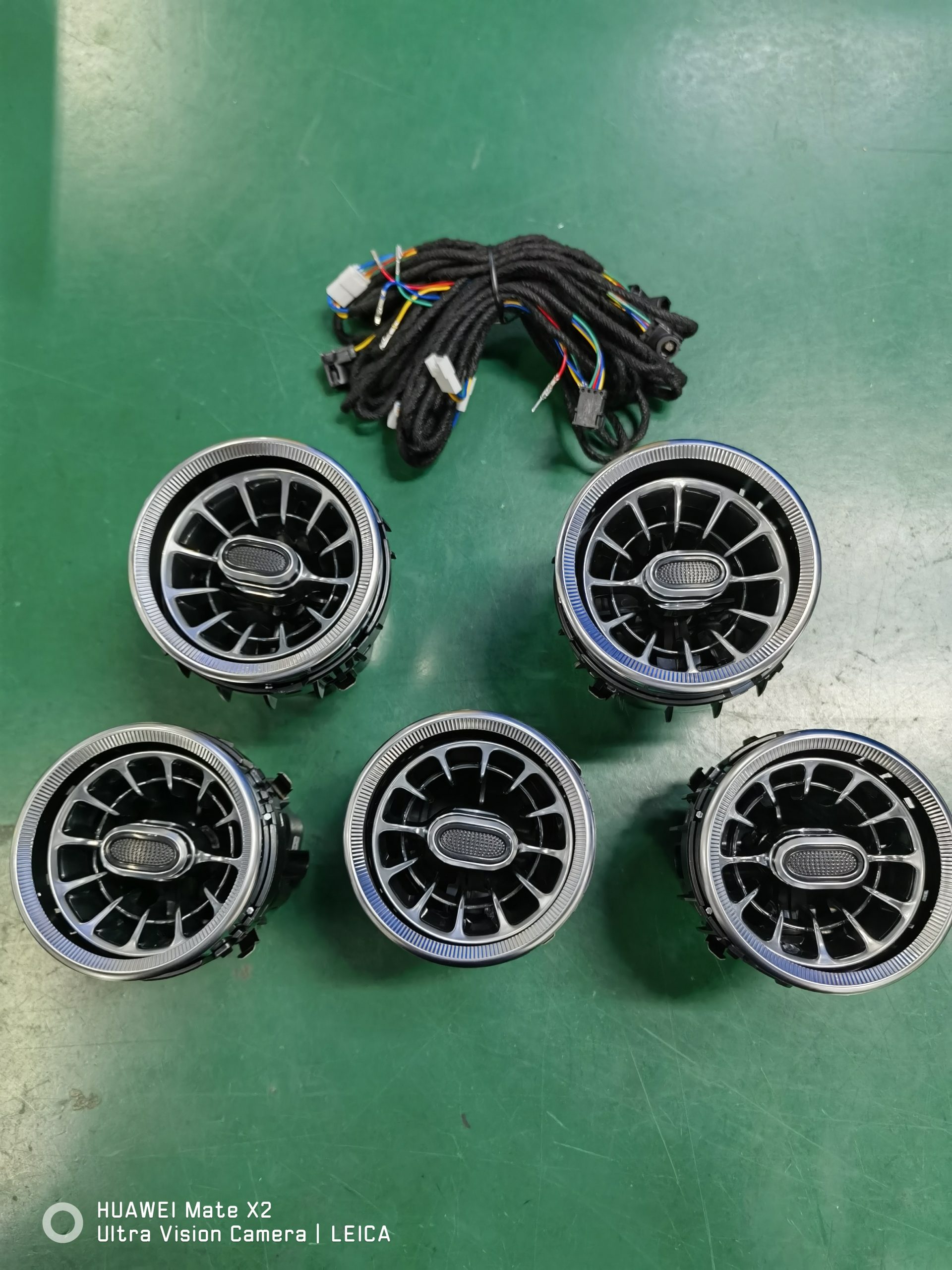

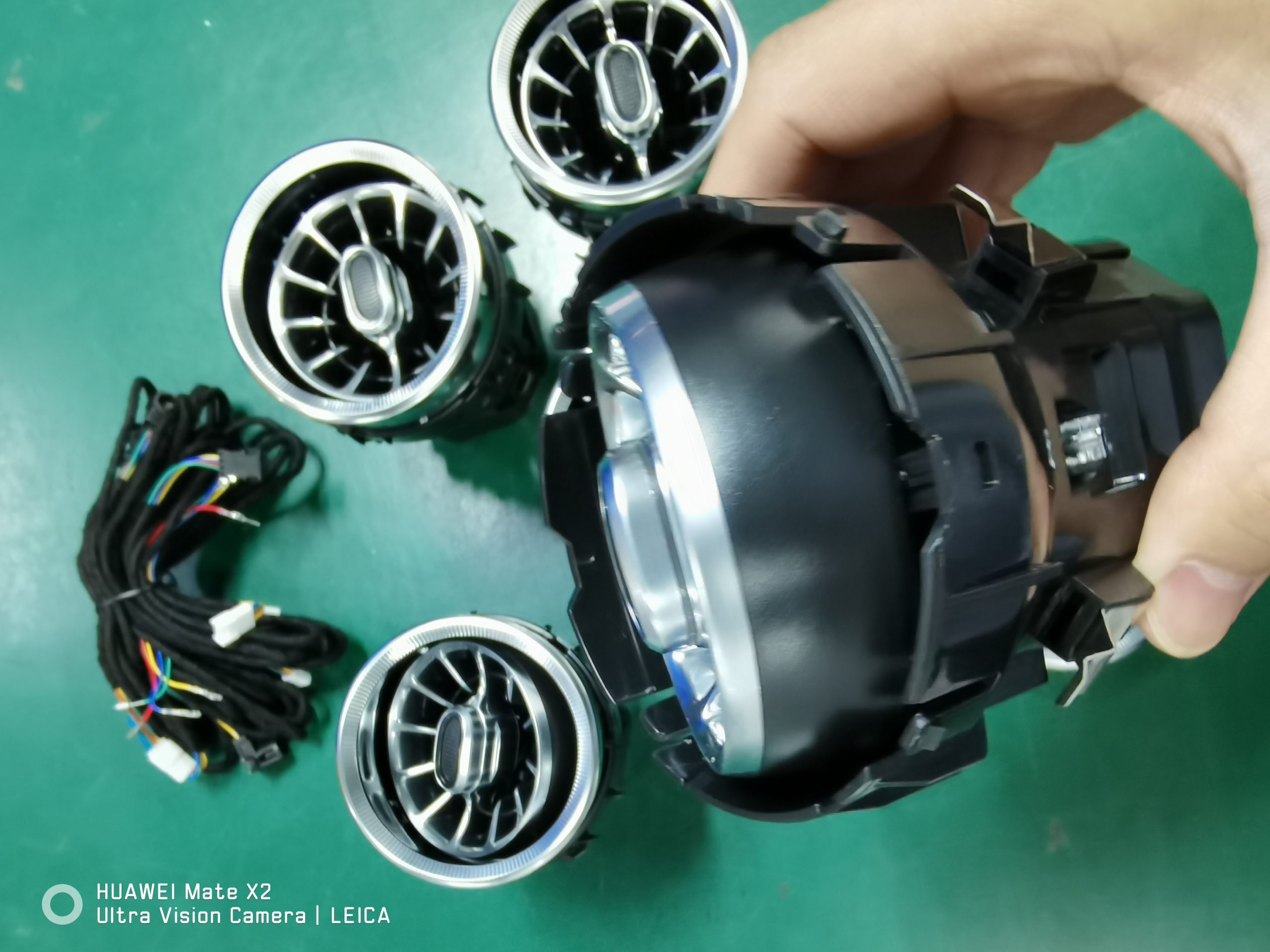

- Vent units
- Illuminated front vent units are identified in the source guide and shown in the real product photos. Confirm the supplied version and quantity before ordering.
- Wiring
- The source component diagram identifies a vent lighting harness and an extension harness. Wiring and module selection depend on the existing ambient-light system.
- Additional modules
- A separate drive module, and in some configurations a dedicated door adapter module, may be required. Do not assume these are included in the pictured components.
Product specifications
- Product location
- Front dashboard air vents
- Installation type
- Replacement-style installation, as described in the source guide
- Appearance
- Turbine-style vent faces with silver-colour surrounds and black housings, as shown in the real photos
- Colour control
- Matched to the ambient-light system using the appropriate wiring and module; configuration must be confirmed
Final contents, wiring and any additional module are confirmed for your car in the quote.
PREPARE BEFORE YOU START
Have your tools ready.
Check the matching guide and your car before starting. Tools shown in a guide may not be a complete list.
Shown in this guide

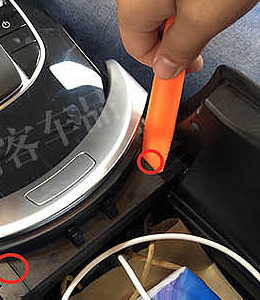

Plastic trim-removal tool
Use: releasing the centre-console trim clips shown in the guide.
Type: plastic trim-removal tool. Check the tool shape against the matching step before starting.
Shown in this guide

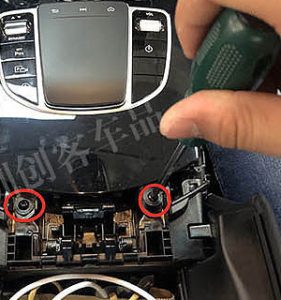

T20 driver
Use: removing the centre-console mounting screws shown in the guide.
Tip: T20, as specified in the matching step. Confirm the tip matches the screw before starting.
Reference photos show tools in use. Tools are not included unless stated in your quote.
04 / DO IT YOURSELF. WITH SUPPORT.
See the steps.
Know your next move.
Look through this product’s illustrated guide before you decide. During installation, ask a question beside the step you’re working on.
Open the installation guideSign in to read the full guide and join the discussion.
PRODUCT-MATCHED GUIDE CAOLIAO-52911795
- Prepare before starting
- A plastic trim-removal tool and a T20 driver are shown in the installation guide. A complete tool list is not specified.
- Before you begin
- The guide covers centre-console trim access, removal and replacement of centre and side vents, trim-ring transfer, wiring and red/green/blue colour checks. Cars without ambient lighting need a module and coding. Review the full guide and confirm the vehicle configuration before starting.
Illustrated instructionsQuestions linked to each stepFind available editions & supplements in the guide
Installation questions & answers
05 / BEFORE YOU START
A little clarity.
More confidence.
Product questions here. Step-by-step help in the matching guide.
Join this product’s discussionWill the vent colours follow my ambient lighting?
The source guide describes synchronised colour changes when the correct wiring and module are used. Tell CKCP whether your ambient lighting is factory-fitted or retrofitted so the matching setup can be checked.
My car has no ambient lighting. Can I install these vents alone?
The guide says this configuration needs a separate drive module and programming/coding to enable the ambient-light interface. Confirm the required parts and coding before ordering.
Can the same front-vent module be used for C-Class and GLC?
No. The guide explicitly states that their front illuminated-vent modules are not interchangeable. This product page is linked to W205; the module must be checked for the exact car.
Does the video show everything included with this product?
No. It shows a W205 cabin with front vents, rear vents and other ambient-light upgrades. Rear vents and other lighting are separate. Confirm the actual front-vent components and any extra modules before ordering.
Are installation help and colour checks available?
The linked installation guide includes replacement steps, wiring arrangements and troubleshooting. It calls for red, green and blue colour checks after installation. Use the guide discussion to ask about your own installation.
